Drum Type Magnetic Separator

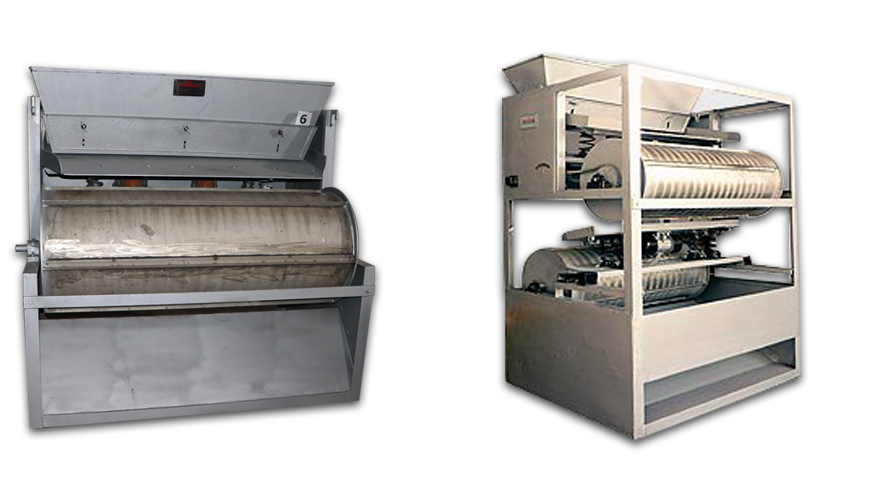

Single Drum Type Magnetic Separator :

The Permanent Drum type separator is the most commonly and widely utilized tool for separating tramp iron from nonmagnetic materials processed in large quantities. Its primary purpose is to ensure the purity of end products, recover valuable metals, and safeguard processing machinery and plants. The Single Drum Type Magnetic Separator is extensively employed in diverse processing industries to eliminate iron contaminants from minerals, chemicals, food, grains, sand, plastic fertilizers, slag, ores, and various other products.

Drum Magnetic Separator

Double Drum Type Magnetic Separator :

The Double Drum Type Magnetic Separator is primarily employed for achieving the highest level of purity. In this machine, the material passes through the magnet twice, enhancing its functionality. It is commonly utilized to separate iron contamination from minerals, chemicals, refractories, and other products. The material outlet in the Double Drum Type Magnetic Separator features a high-power permanent magnetic plate, utilizing modern isotropic permanent magnets with superior coercivity and long-lasting magnetic strength. The machines are available in a totally enclosed design with a vibrating material inlet hopper to prevent dusting and pollution. Online fitting design options are also available based on specific requirements.

Size range

The Double drum magnetic separators are available in standard drum diameters of 300mm, 400 mm. Drum width range from 300mm to 1200mm. Other sizes can be made as special to your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be handled.

Working Principle & Magnetic Separator

The Permanent Magnetic Drum comprises of a stationary Permanent Magnetic assembly with a consistent and enduring magnetic field across half of the drum circumference. The drum shell is made of non-magnetic stainless steel and rotates around the magnetic field. Uniform material feed is ensured by the drop-down mechanism, allowing powerful magnets to attract ferrous particles and hold them in the rotating shell. As the rotating shell carries iron particles through the magnetic stationary chain, non-magnetic material falls freely away from the shell, while ferrous particles remain firmly attached and carried outside the divider and away from the magnetic field. The power of the permanent magnetic drum is guaranteed to exceed the required strength.

Salient Features Of Drum Magnetic Separator:

  • Drum consists of high energy Rare Earth Neodymium Permanent Magnets.
  • Strong & rugged construction.
  • Automatic Separator of iron impurities.
  • Completely enclosed design to avoid dusting and pollution.
  • High Power Magnetic Separator
